Exporting a plot from MyJohnDeere

Below is a step-by-step description of how to export a plot as a .zip from the MyJohnDeere environment, illustrated with several screenshots.

  1. Open MyJohnDeere and click on 'Operations Center' (on the left of the home screen under 'Mijn toepassingen').

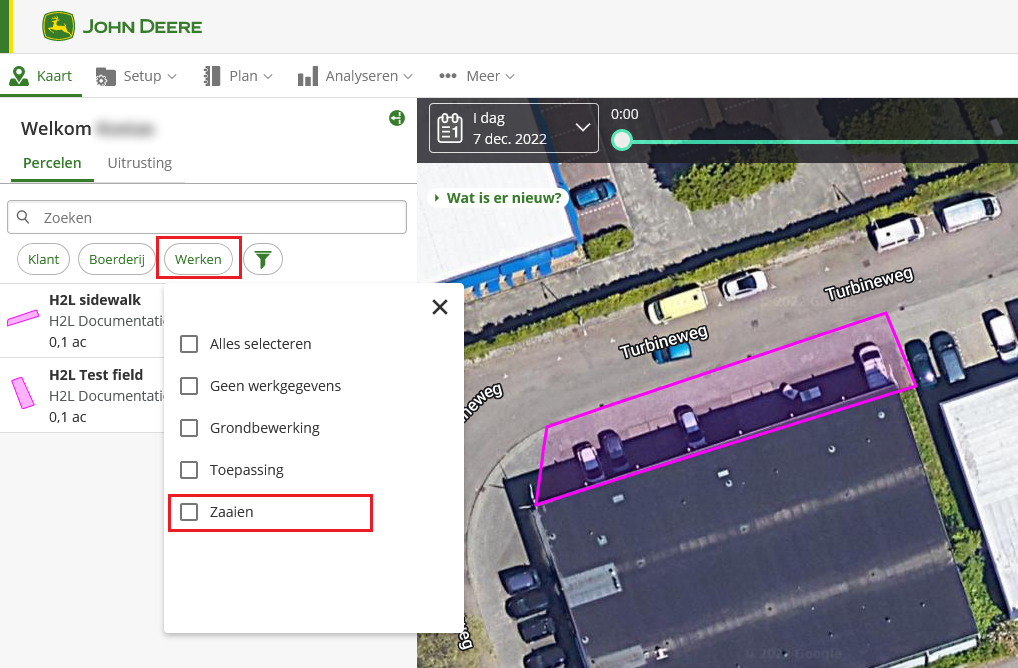

  2. Click on 'Werken' under the plot search bar and select 'Zaaien' in the pop-up menu.

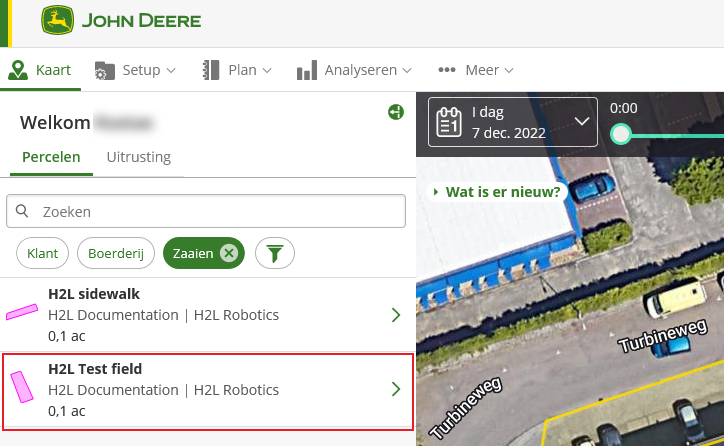

  3. Click on the plot you want to export.

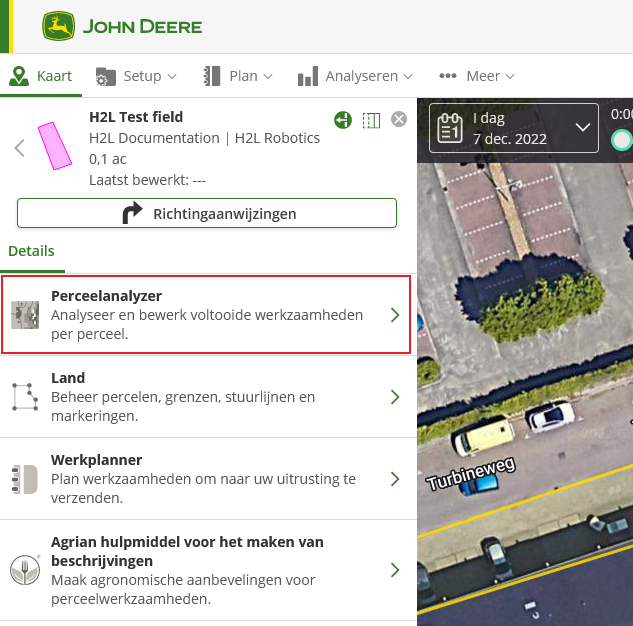

  4. Open the plot analyzer for this plot.

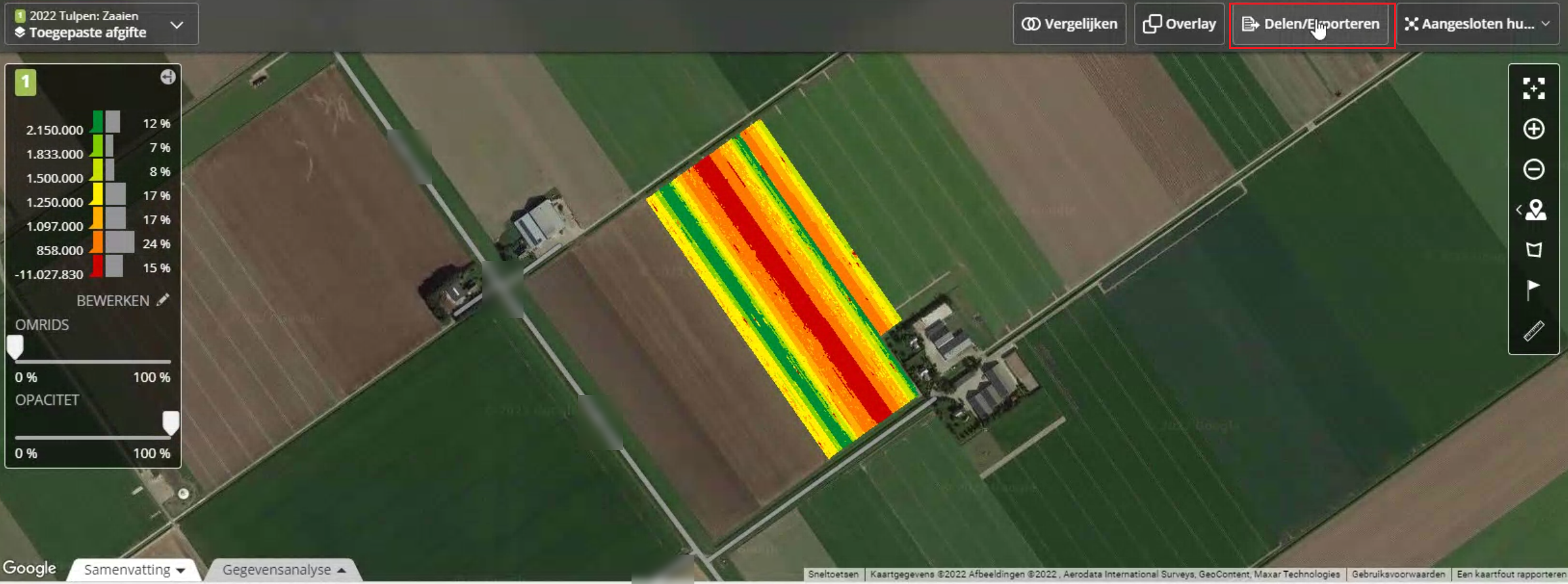

  5. Click on 'Delen/Exporteren' at the top right of the plot analyzer.

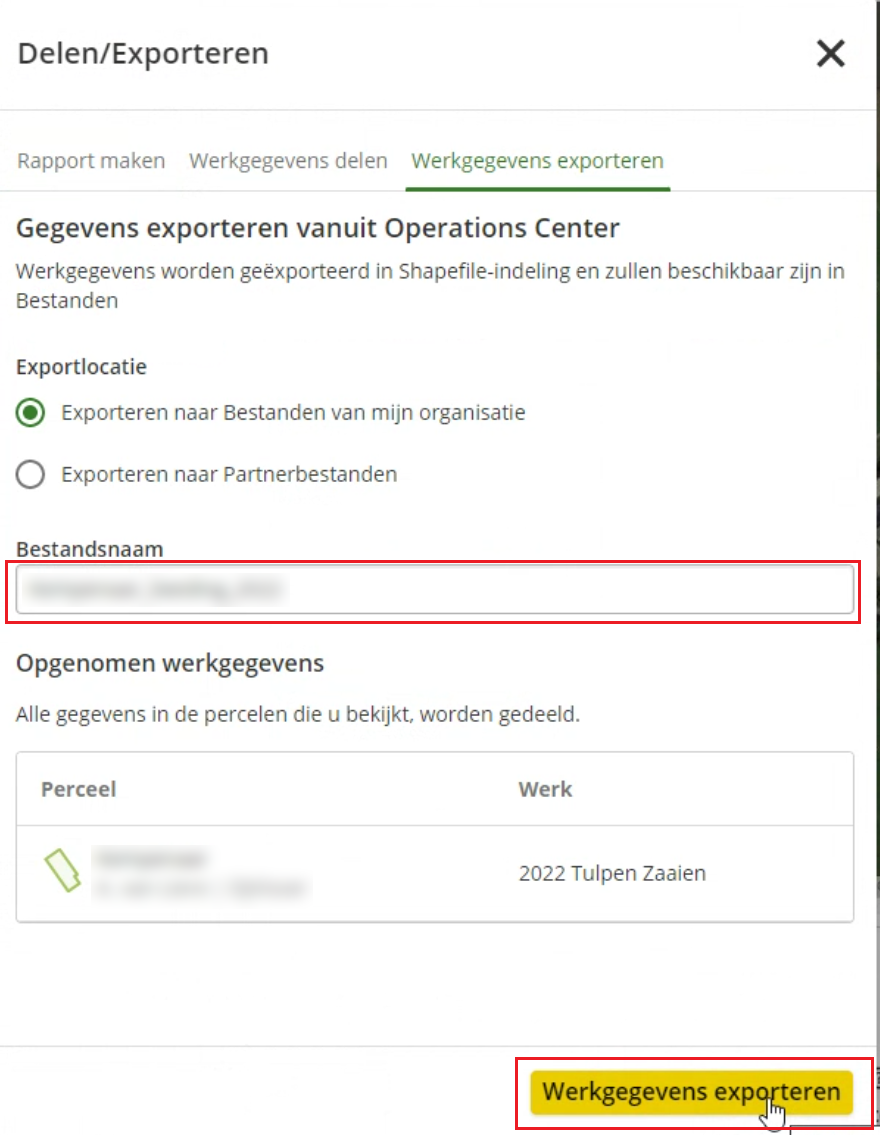

  6. Go to 'Werkgegevens exporteren' (if you're not already there), select 'Exporteren naar Bestanden van mijn Organisatie' and enter a filename. Then click on 'Werkgegevens exporteren'.

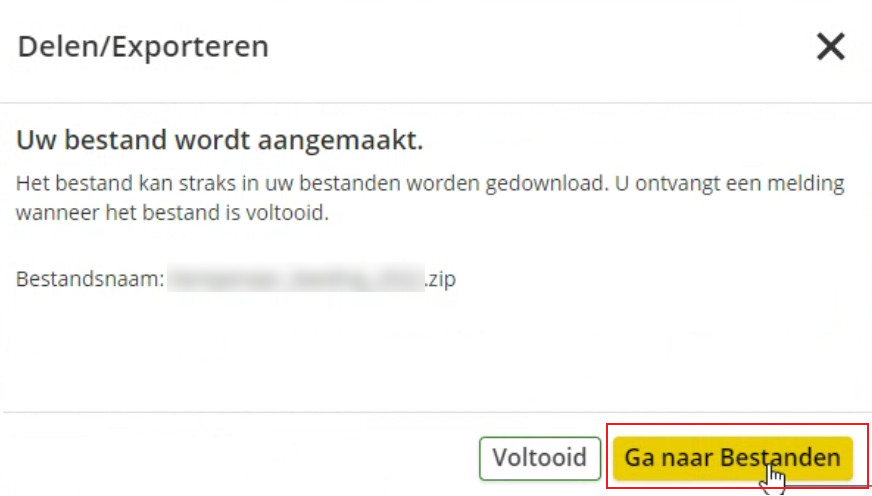

  7. You will now see the loading screen below. Press 'Ga naar Bestanden' when the export is complete.

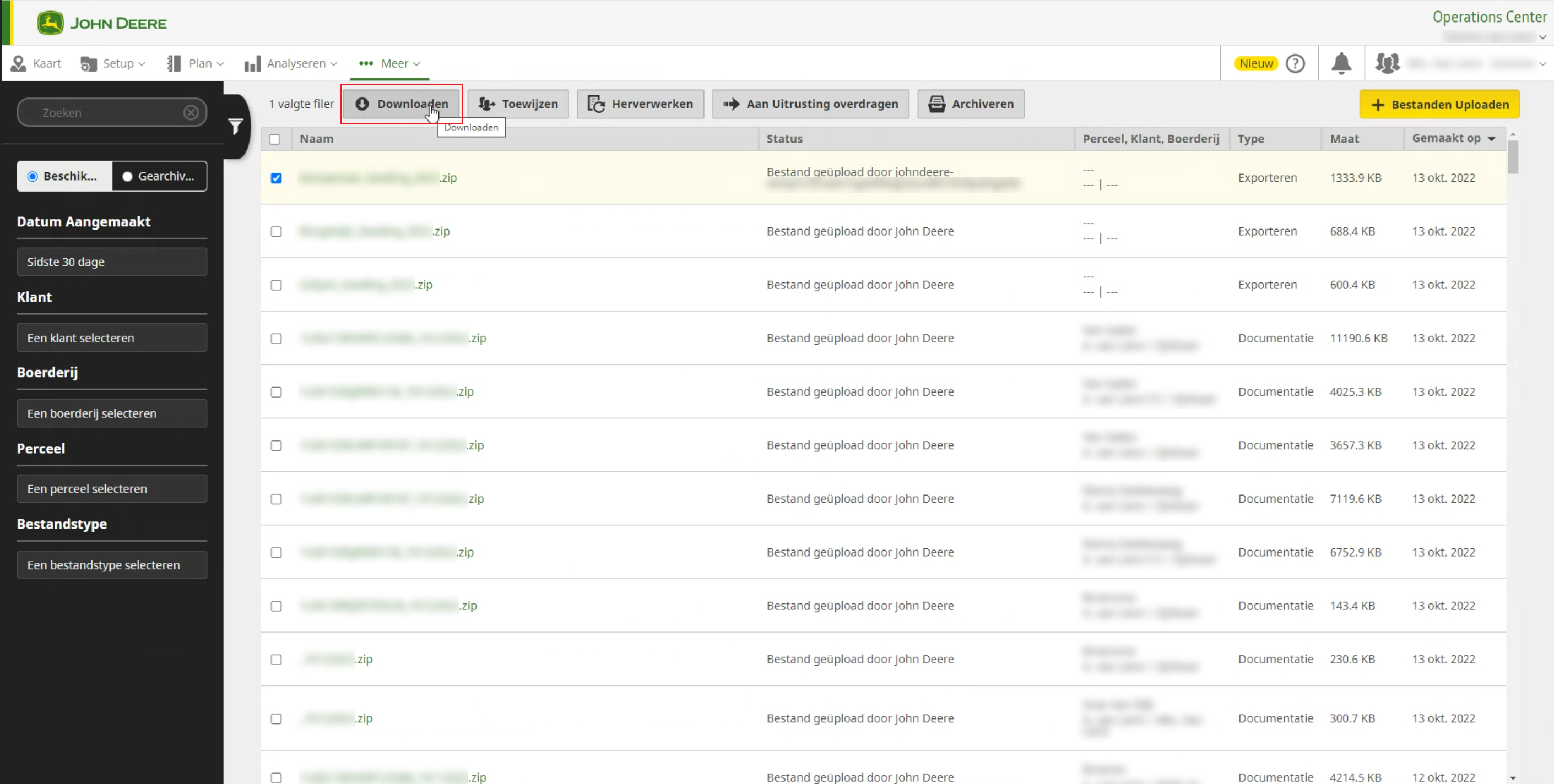

  8. Now tick the box next to the file you just exported (in the box to the left of the filename). Now click on 'downloaden'.
