Configuring the planter

The most important setting to configure for you planter is the distance between the planting machine antenna and the place where the bulbs fall.

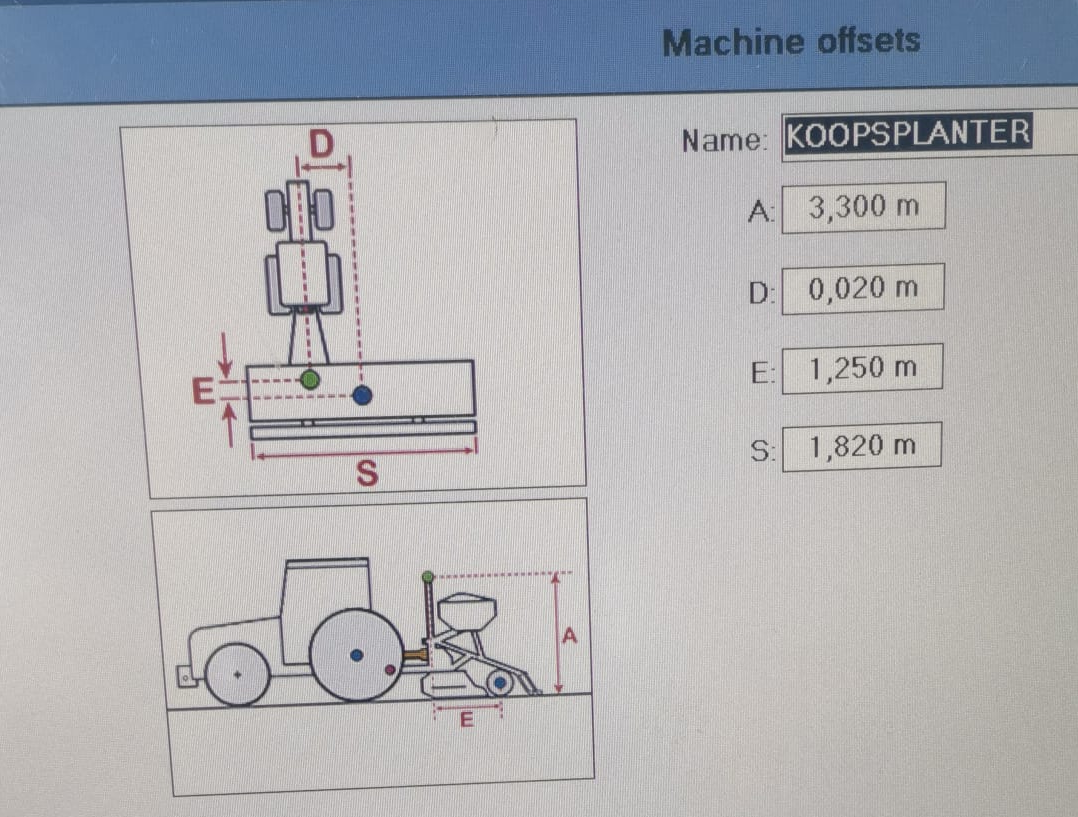

In a twin antenna system, this setting is named E as you can see in the picture below.

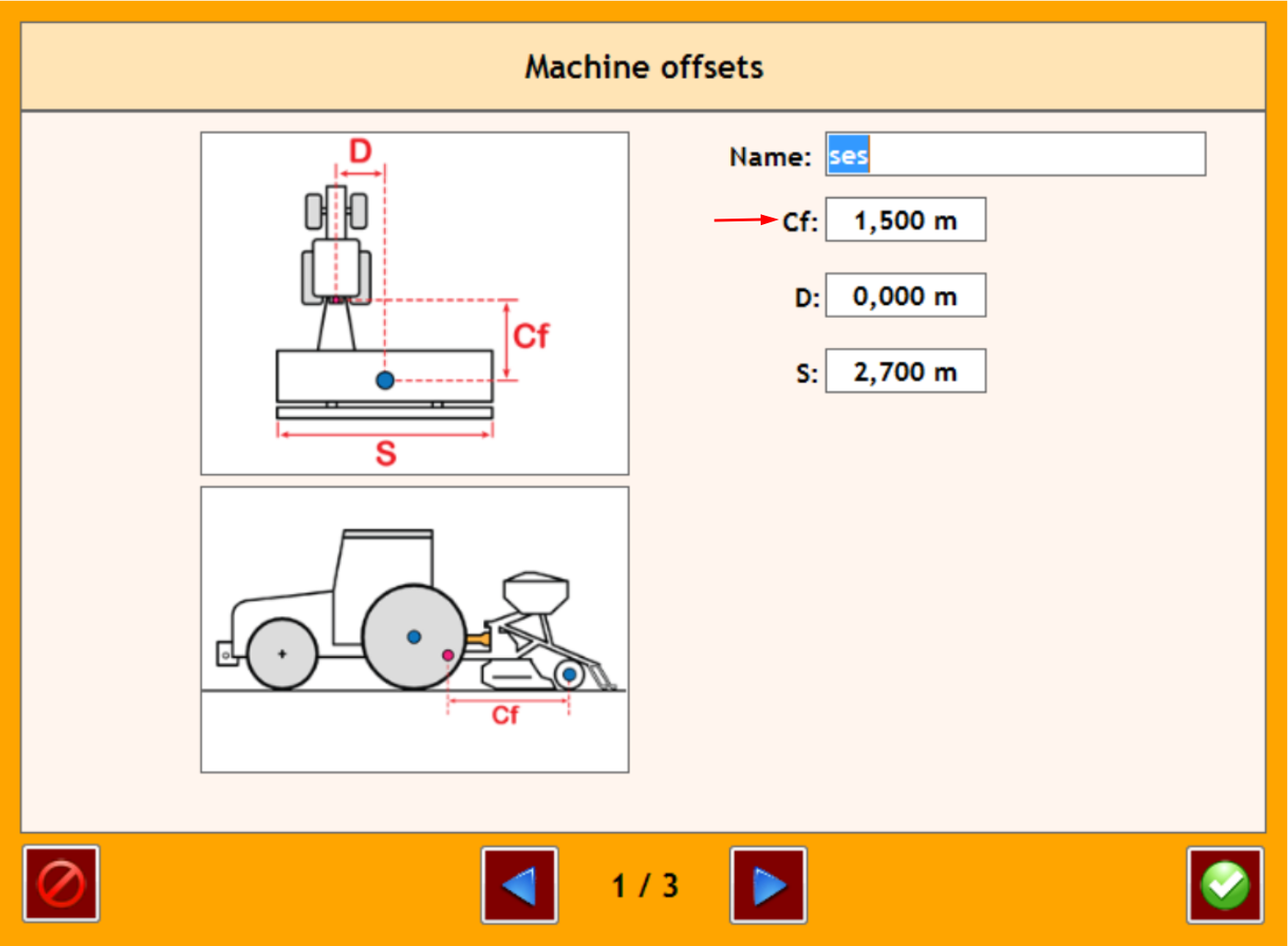

In the case that you have a single antenna on the tractor (which is not recommended), you need to configure the distance Cf, as shown in the picture below.
